Particle counter R-PC300
The technology of the R-PC300 is based on the diffusion loading principle. In combination with the EOBD module, the portable particle counter R-PC300 is suitable for measuring particle number concentration according to the new AU equipment guideline.
The particle counter R-PC300 is characterised by its high measuring accuracy for the determination of particle number concentration and its simple handling, ideal for ensuring the highest test quality in mobile use.
Advantages of our equipment:
- Integrated ASA interface.
- Communication via Bluetooth, WLAN, USB.
- Simple and easy to use.
- Display to show the measurements.
- Easy to integrate into existing systems.
- No means are required for operation.
- Quick and easy replacement of filters without having to open the appliance.
- Low downtime thanks to automatic self-checks.
- Robust and low-maintenance measuring principle.
- Removal of volatile particles.
- Without heating probe hose, making it more resistant to possible malfunctions.
- Exhaustive filtered dilution system to avoid particle contamination.

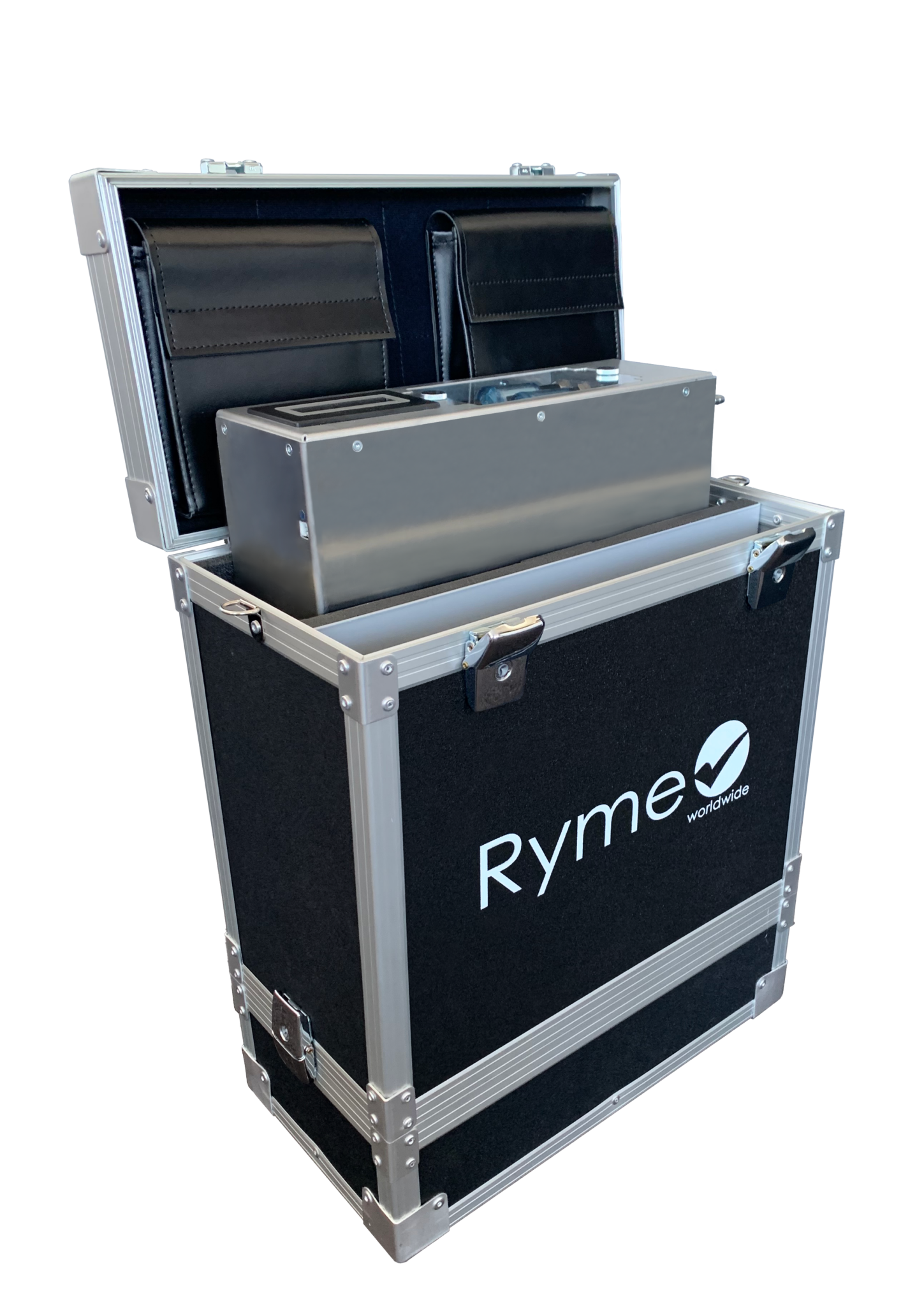

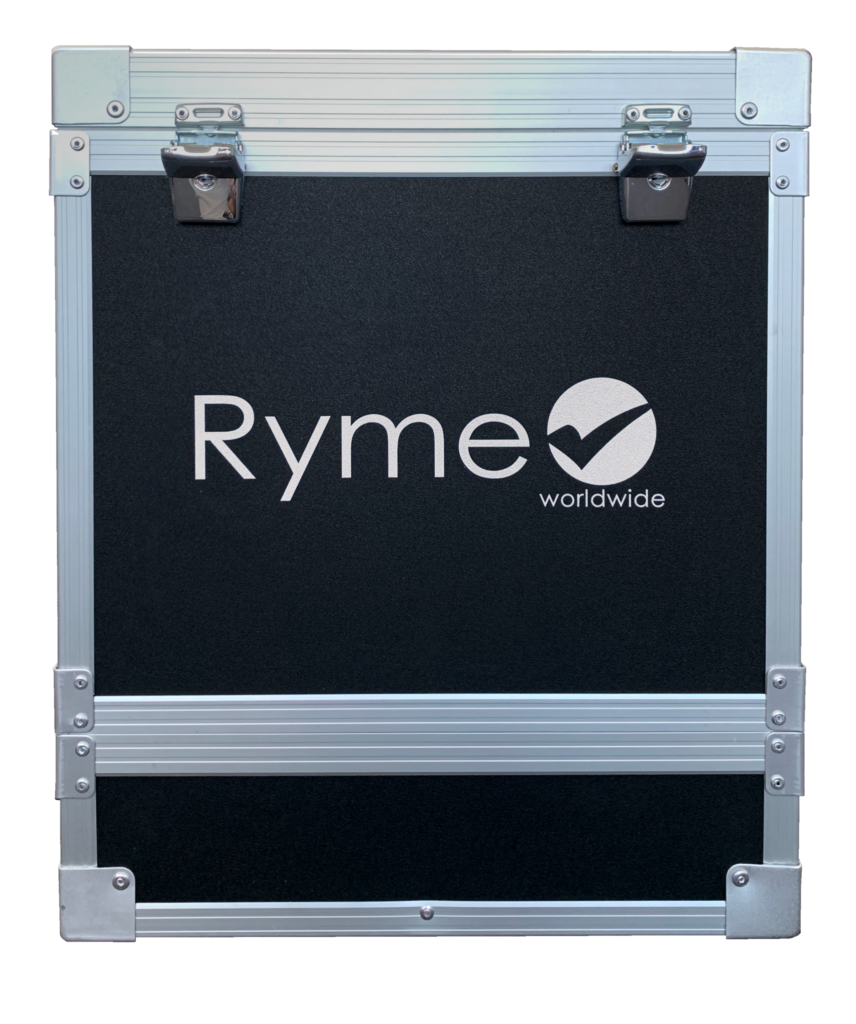

- Optional carrying case.
- Optional battery kit for mobile use.
Automated 100% operation
- Self-test when switching on the particle counter
- Automated zero testing and adjustment
- Optional mobile kit consisting of: Transport box, trolley and battery pack (specially designed for the requirements of the MOT application).
Technical data
Technical data and dimensions
-
Power supply
24 V ±10 % DC voltage
-
Energy consumption
< 120 W
-
Weight
5 kg
-
Dimensions (l x h x w)
325 x 103 x 290 mm
-
Operating temperature
+5 °C to 40 °C
-
Storage temperature
-10 °C to +50 °C
-
Ambient humidity
< 95 % (non-condensing)
-
Environmental pressure
860 to 1,060 hPa
-
Gas flow measurement
2 l/min
-
Accuracy of measurements (laboratory conditions)
± 25 % of the measured value, at least 5,000 cm-3
-
Preparation and warm-up time
< 5 min
-
Protection
IP54 in the corresponding measuring enclosure
-
Connectivity
USB, Bluetooth, WLAN
Multilanguage Software (Captures very soon)
Ryme Worldwide has SMRW (Software Maquinaria Ryme Worldwide) for its equipment, which is responsible for collecting information from our equipment and peripherals, analysing it and displaying it on the information output device. All of this is accompanied by the necessary electronics to optimise performance to the maximum.
Work in your inspection centre or workshop in the fastest and most efficient way with the operation of our Ryme Worldwide Machinery Software.
A unique way of working designed to make the inspector's job easier.
No redundancies, what you need, when you need it, how you need it. Read more
