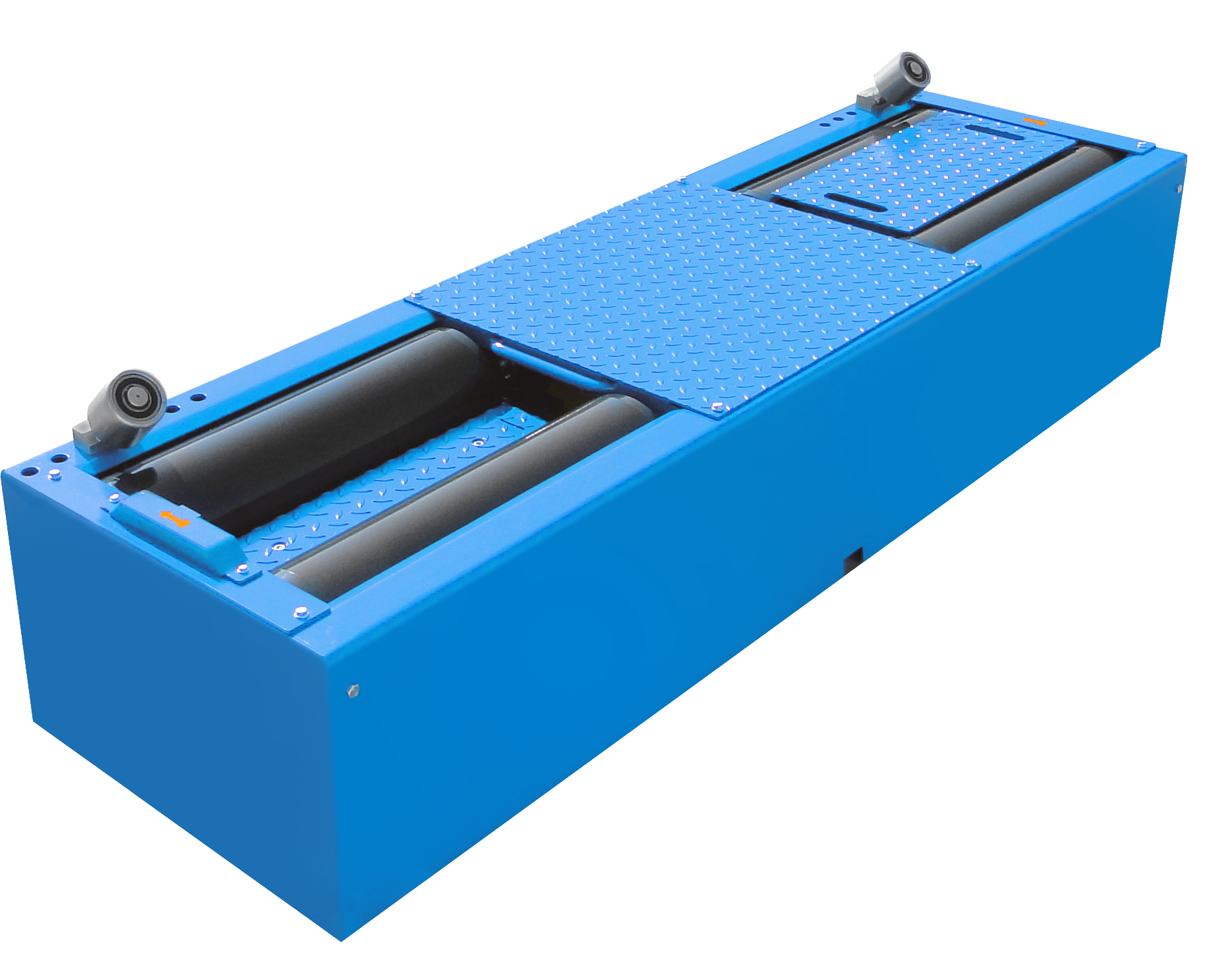

Speedometer VTL-AE (Electric Drag)
Electric Drag Speedometer VTL-AE designed to check the status of the taximeter, speedometer and odometer. Fare update with password validation.
The speedometer compares the speed indicated by the technician and the actual speed, finding the difference between the two in %. The odometer test shall record both the distance indicated by the technician and the actual distance travelled by the vehicle, also finding the difference between the two in %.
The taximeter test identifies the charging error, according to the tariffs in force, indicating if the value is out of parameters, both in kilometric test and hourly test.
The measurement system is based on a high-resolution encoder and incorporates a photocell to calculate the error introduced by tyre deformation. The speed measurement is obtained through an incremental encoder mounted on the front roller shaft.
Rear roller that can be adjusted to fit different wheel diameters.
Standard equipment
- Speedometer with electric brake
- Control console
- Roller covers
- Electronic control and SMRW Software
- Pneumatic lift for easy exit
- Safety stops to prevent sideways exit
- Special rollers for superior adhesion
Taximeter Tests
- Hourly drag test
- Kilometric drag test
- Possibility to choose from several tariffs
Odometer/Speedometer tests
- Checking and evaluation of results on different routes
- Testing and evaluation of results at different speeds
Console for light vehicle equipment
Technical data
- Maximum axle load3,5 T
- Maximum test speed (without traction)120 km/h
- Min. / max. track width795 - 2,130 mm
- Measuring step1 km/h / 0.1 m
- Roller locking systemPneumatic
- Voltage (3-phase)400 V 50 Hz
- Length of rollers682 mm
- Outside diameter of rollers202 mm
- Distance between roller axles360 mm
- Pneumatic supply8 bar
Software
Ryme Worldwide has SMRW (Software Maquinaria Ryme Worldwide) for its equipment, which is responsible for collecting information from our equipment and peripherals, analysing it and displaying it on the information output device. All of this is accompanied by the necessary electronics to optimise performance to the maximum.
Work in your inspection centre or workshop in the fastest and most efficient way with the operation of our Ryme Worldwide Machinery Software.
A unique way of working designed to make the inspector's job easier.
No redundancies, what you need, when you need it, how you need it. Read more
