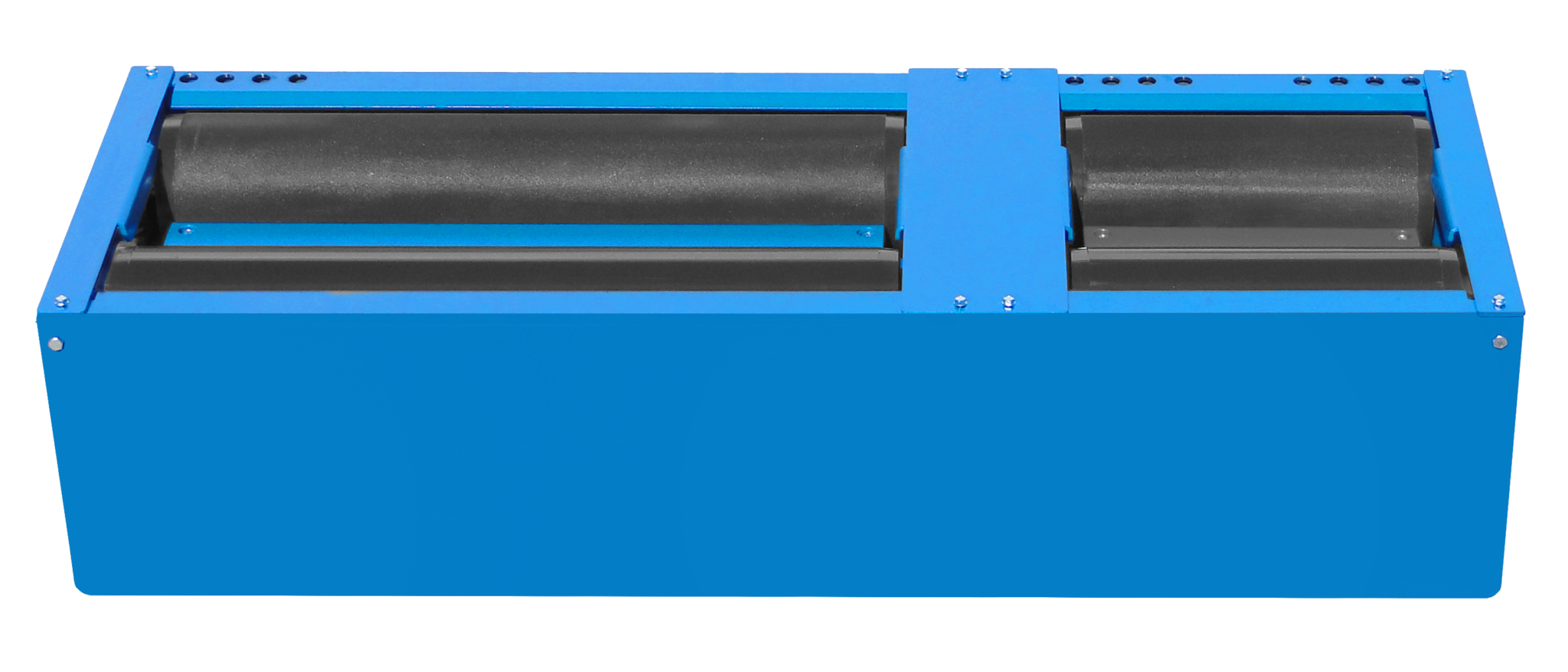

Speedometer VTL+M (Tricycles)
The VTL+M speedometer is an ideal machine for testing and determining the state of the speed limiter for quadricycles, motorbikes, quads and tricycles.
High-strength steel frame assembled with great precision, avoiding the possibility of human error in assembly and giving an unbeatable appearance.
The speed measurement is obtained by means of an impulse sensor mounted on one of the rollers.
The surface is smooth and painted in epoxy, which makes the rollers very durable.
Standard equipment
- Speedometer with electric brake
- Control console
- Electronic control and SMRW Software
- Pneumatic lift for easy exit
- Safety stops to prevent sideways exit
- Special rollers for superior adhesion
Console for light vehicle equipment
Technical data
- Maximum axle load1 T
- Maximum test speed120 km/h
- Min. / max. track width200 - 1,600 mm
- Measuring step1 km/h / 0.1 m
-
Measurement resolution
± 0.1 km/h
- Roller locking systemPneumatic
- Voltage230 V 50 Hz
- Length of rollers495 mm / 1,000 mm
- Outside diameter of rollers202 mm
- Distance between roller axles360 mm
- Pneumatic supply8 bar

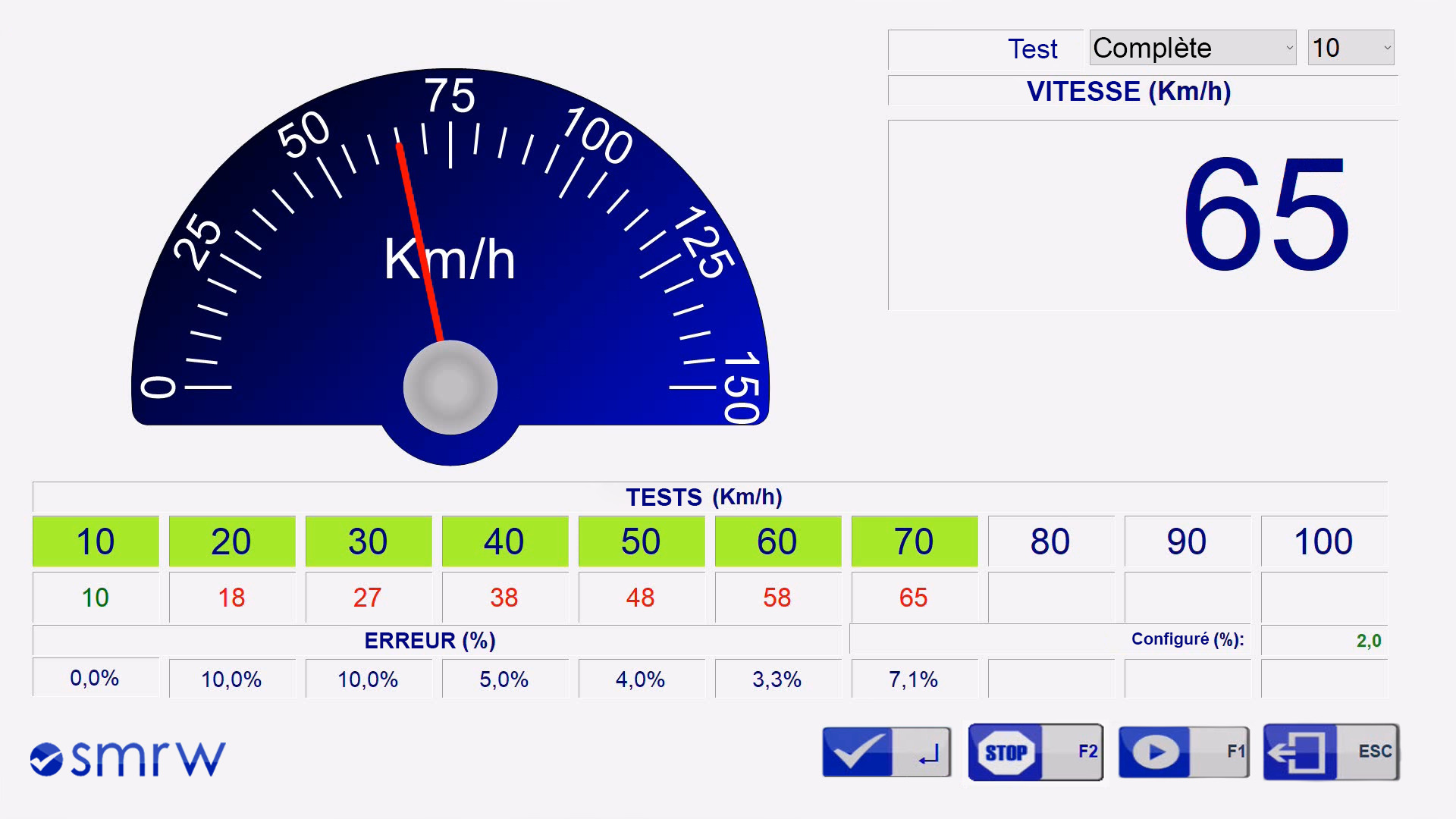

Software suitable for light vehicles and motorbikes
Ryme Worldwide has SMRW (Software Maquinaria Ryme Worldwide) for its equipment, which is responsible for collecting information from our equipment and peripherals, analysing it and displaying it on the information output device. All of this is accompanied by the necessary electronics to optimise performance to the maximum.
Work in your inspection centre or workshop in the fastest and most efficient way with the operation of our Ryme Worldwide Machinery Software.
A unique way of working designed to make the inspector's job easier.
No redundancies, what you need, when you need it, how you need it. Learn mores
