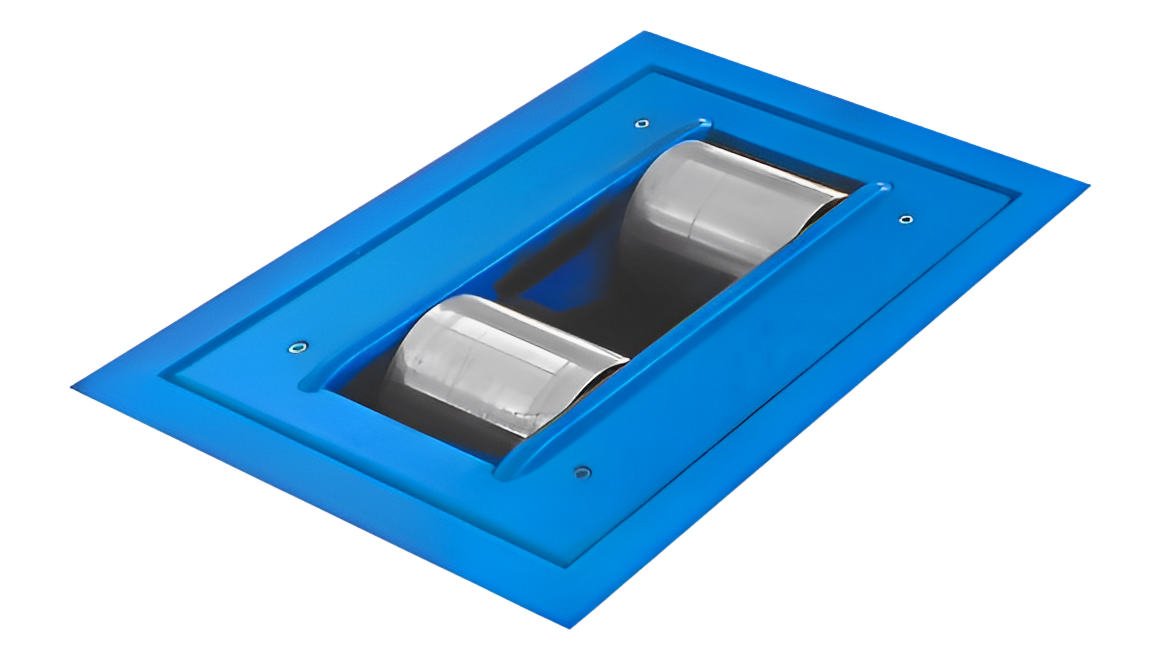

Speedometer VTC-III (Embeddable)
Speedometer VTC III is designed for embedding or surface mounting and is ideal for checking the tachometer and limiter of mopeds. High-strength steel frame assembled with great precision, avoiding the possibility of human error in the assembly and conferring an unbeatable appearance.
The speed measurement is obtained through an incremental encoder mounted on the front roller shaft.
The surface is smooth and coated with an anti-rust treatment which gives the rollers a long service life.
Rear roller that can be adjusted to fit different wheel diameters.
Frame suitable for both embedding on the floor or using it at surface-level.
Standard equipment
- Moped speedometer
- Access ramps
- Foot support platform
- Electronic control and SMWR Software
Furniture to enable linking laptop computer
Technical data
- Maximum axle load250 kg
- Maximum test speed120 km/h
- Length of rollers195 mm
- Outside diameter of rollers150 mm
-
Roller centre distance (3 positions)
a) 365 mm
(b) 308 mm
(c) 250 mm
-
Measurement resolution
± 0.1 km/h
- Rolling resistance<0,1 Nm
- Weight of equipment56 kg
- Weight of platforms9 kg
Software
Ryme Worldwide has SMRW (Software Maquinaria Ryme Worldwide) for its equipment, which is responsible for collecting information from our equipment and peripherals, analysing it and displaying it on the information output device. All of this is accompanied by the necessary electronics to optimise performance to the maximum.
Work in your inspection centre or workshop in the fastest and most efficient way with the operation of our Ryme Worldwide Machinery Software.
A unique way of working designed to make the inspector's job easier.
No redundancies, what you need, when you need it, how you need it. Read more
