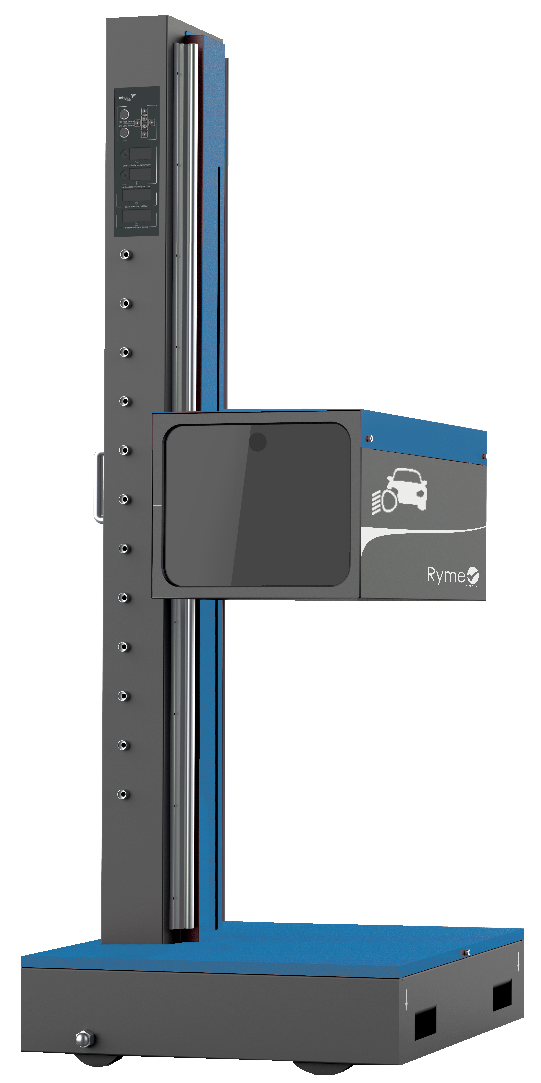

Robotized Headlight Tester RY-RR

The robotic regloscope RY-RR is designed to be used as a automatic measuring device for the inspection of headlamps on all types of vehicles.

Very fast operation, at an average of 40 seconds, and only 25 seconds with double lamp test synchronously.

Thanks to the latest technology of its CCD cameraCCD sensors, the capture offers a wider range of tones (highlights, mid-tones and shadows) in the captured images. In addition, CCD sensors create high quality images with low digital noise and the image capture and processing time is shorter than other CMOS camera processors.

Standard equipment

High resolution CCD camera sensor
LED display with VGA interface
Rails for floor installation
PC communication system

Technical data

Central lens from the ground350 -1,400 mm
Luminous intensity0-120,000 cd ≤ 10%
Measuring range
Top: 400 mm/10 m
Down: 560 mm/10 m
Left: 560 mm/10 m
Right: 560 mm/10 m
Accuracy
± 32 mm/10 m (8%)
Power supplyAC 220 V ± 10%, 50 Hz ± 1%
Temperature of use-5 to 40ºC
Test distance80 ≈ 120 cm
ConnectionsRS 232
Dimensions of the rulloscope800 x 670 x 1,700 mm
Weight100 kg
Rail dimensions5 m

Software

Ryme Worldwide has SMRW (Software Maquinaria Ryme Worldwide) for its equipment, which is responsible for collecting information from our equipment and peripherals, analysing it and displaying it on the information output device. All of this is accompanied by the necessary electronics to optimise performance to the maximum.

Work in your inspection centre or workshop in the fastest and most efficient way with the operation of our Ryme Worldwide Machinery Software.

A unique way of working designed to make the inspector's job easier.

No redundancies, what you need, when you need it, how you need it. Read more
