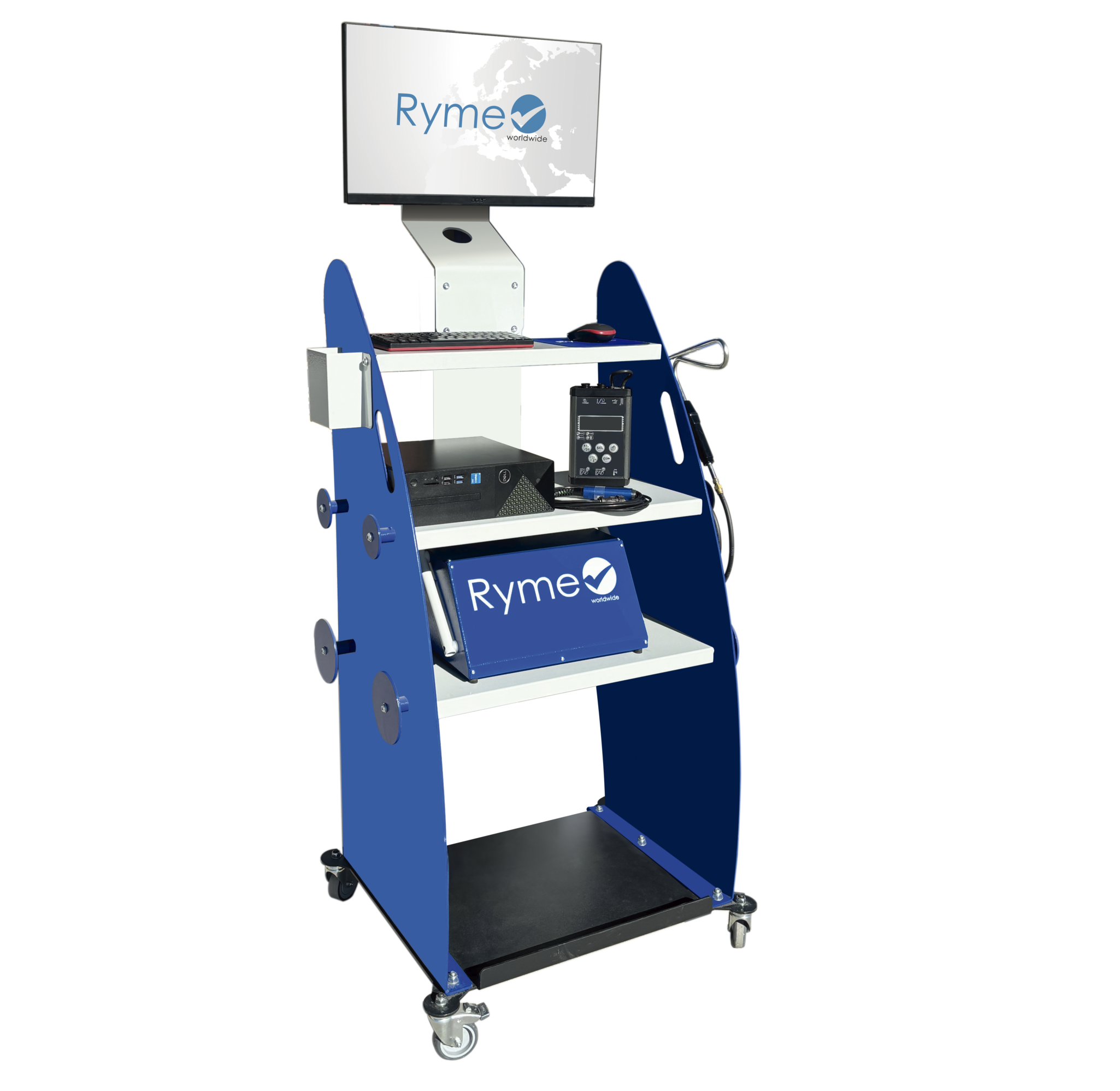

Gas Analyser RY-4000AG

The gas analyser RY-4000AG is an equipment prepared for the detection of ignition and injection problems, as well as for the improvement of fuel consumption.

Based on infrared technology, measures up to 5 gases; CO, CO2, HC, O2NOx (optional), and other parameters such as Lambda, corrected CO, oil temperature and rpm.

The software displays the concentration of the gases and the revolutions per minute numerically.

Measuring capability dual exhaust systems.

Adapted for the measurement and calculation of Lambda in LPG, CNG and LNG vehicles.

Standard equipment

  • Gas analyser module
  • Sampling probe
  • Special cabinet for emissions equipment
  • SMRW software
  • Temperature gauge

Technical data

  • Measurable gasesHC, CO, CO₂, O₂, NOx (optional)
  • Calculation of Lambda factor and corrected CO
  • Storage temperature-50 to 70 ºC
  • Operating temperature-12 to 48ºC
  • Operating pressure750-1,100 mbar
  • Automatic water and particle removal
  • Power supply115-230 V 50/60 Hz
  • Nominal flow rate4,2 l/min
  • Minimum flow rate3 l/min
  • CommunicationRS 232 series

Software

Ryme Worldwide has SMRW (Software Maquinaria Ryme Worldwide) for its equipment, which is responsible for collecting information from our equipment and peripherals, analysing it and displaying it on the information output device. All of this is accompanied by the necessary electronics to optimise performance to the maximum.

Work in your inspection centre or workshop in the fastest and most efficient way with the operation of our Ryme Worldwide Machinery Software.

A unique way of working designed to make the inspector's job easier.

No redundancies, what you need, when you need it, how you need it. Read more
