Gas analyser and opacimeter RY-3200AGH
The gas analyser is a device for the detection of ignition and injection problems as well as for the improvement of fuel consumption. Based on infrared technology, it measures up to five gases; CO, CO2, HC, O2NOx (optional), and other parameters such as Lambda, corrected CO, oil temperature and rpm.
The opacimeter is a partial flux meter based on the principle of light absorption by smoke. It allows to perform an official opacity test guided step by step by the software.

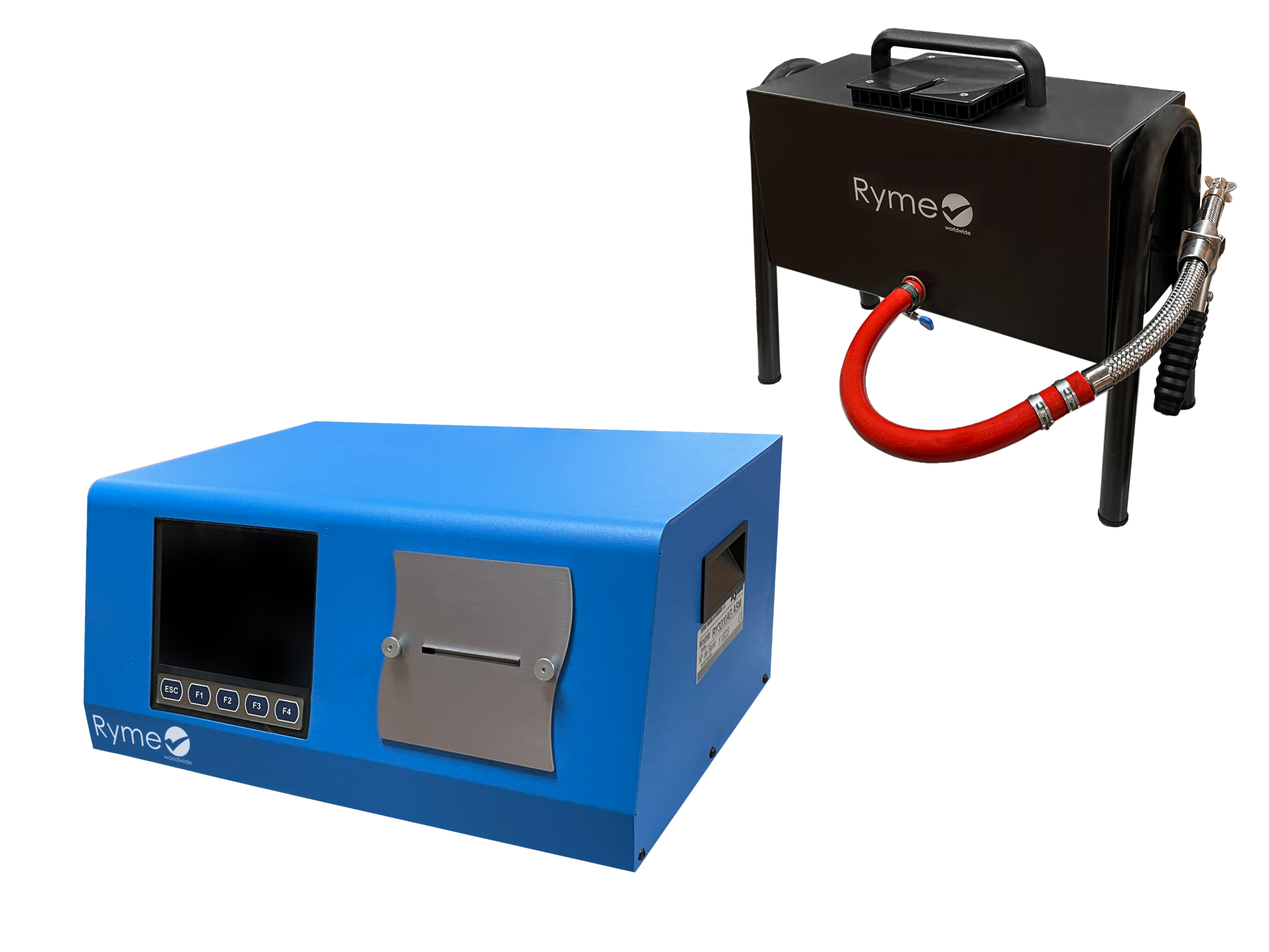

In short, Ryme Worldwide combines the RY-3200AG gas analyser and RY-3200AH opacimeter in a single solution.
Standard equipment
- Gas analyser module
- Smoke analyser module
- Sampling probe
- Temperature and RPM measuring sensors
- Commissioning certificate for opacimeter module F
Technical data

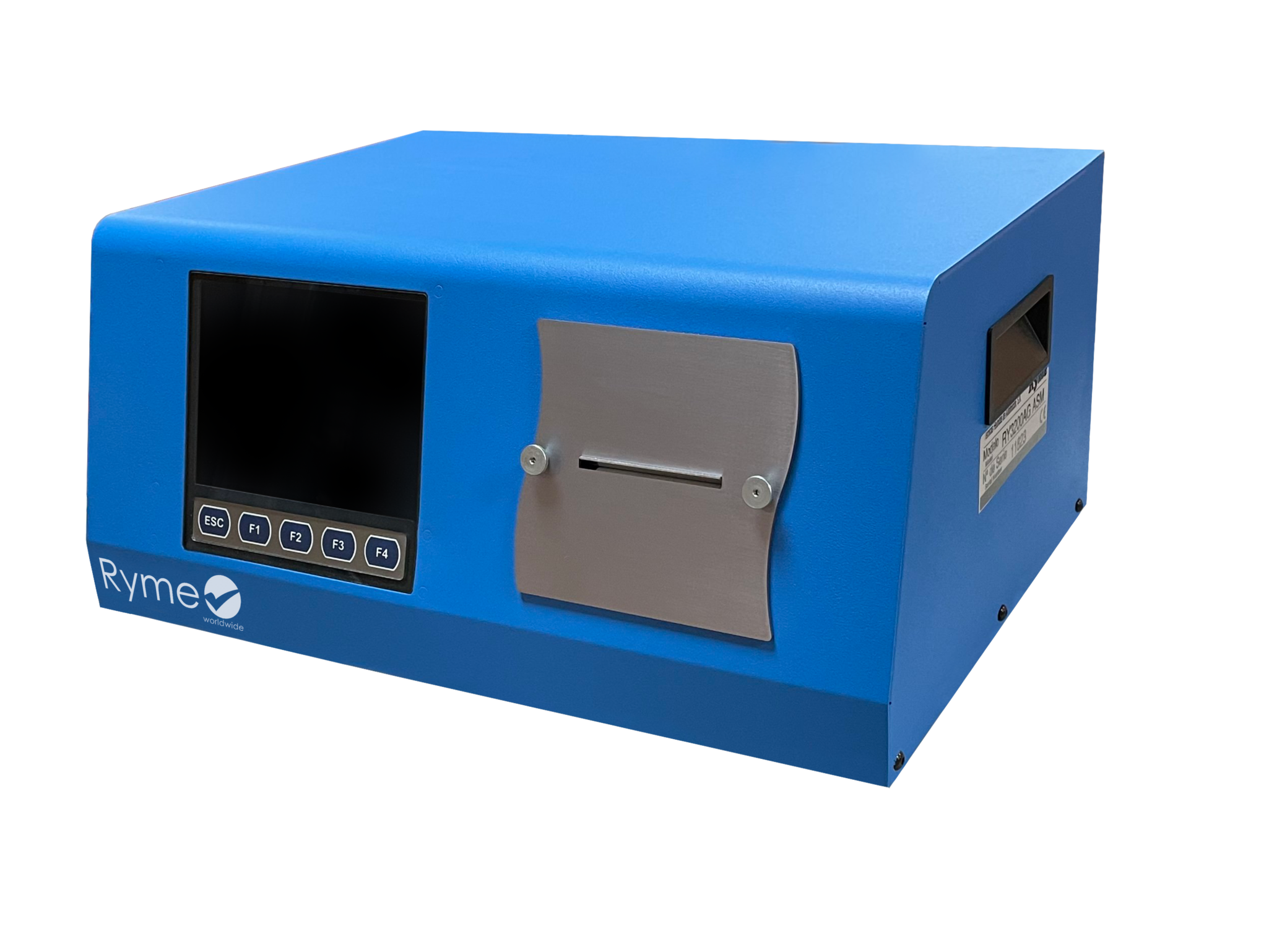

Gas analyser
-
Measurable gases
HC, CO, CO₂, O₂, NOx (optional)
- Calculation of Lambda factor and corrected CO
-
Storage temperature
-50 to 70 ºC
- Operating temperature-10 to 55 ºC
- Atmospheric pressure750-1,150 mbar
- Power supply115-230 V 1.5 A / 47 - 63 Hz
- Oil Temperature/Resolution Meter-5 to 150 ºC / 1 ºC
- RPM/resolution meter0-9.999 rpm / 10 rpm
- Lambda meter/resolution0-9,99 / 0,001 o 0,01
- Regulations it complies withOIML R99 / ISO 3930 / BAR97
- Database and scrap assessment available
-
Dimensions
400 x 400 x 190 mm

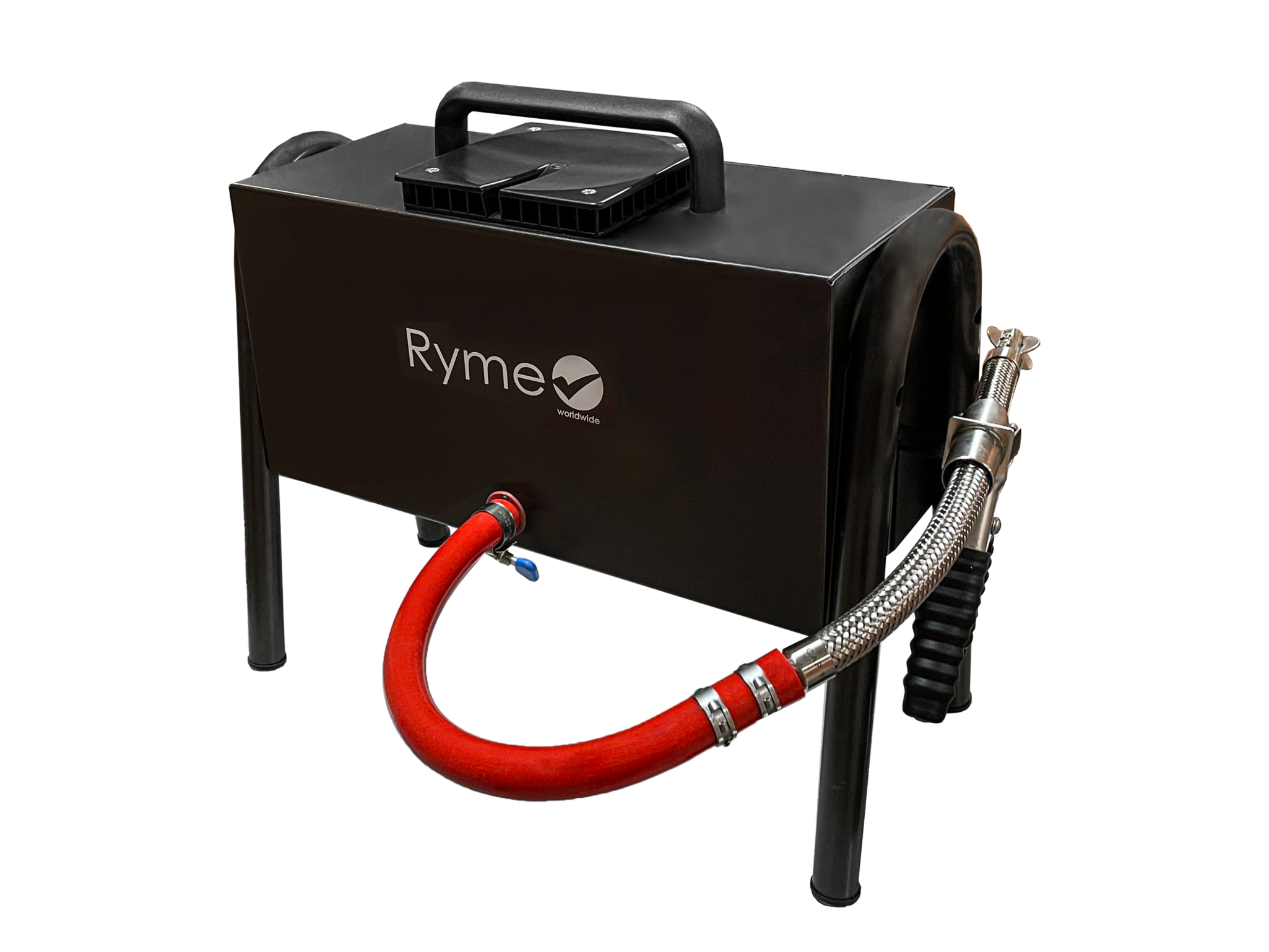

Opacimeter
- Environmental working conditions: TemperatureAmb. temp. in use: -10 to 55ºC / Amb. temp. in official use: 0 to 45ºC
- Environmental working conditions: Humidity30-90%
- Environmental working conditions: Pollution<2%
- Storage temperature-32 to 55ºC
- OpticsGreen light source between 480 and 680 mm, max. 565 mm
- DetectorSilicon photodiode
- Response timeFrom 10 to 90%, <0,2 s
- Acoustic noise53 dB
- Warm-up period3-6 min, depending on outside temperature
- Standard test probe745 mm / 10 mm
- Opacity (range, resolution)N: 0-100% / 0,10% K: 0,00-9,99 m-1 / 0,01 m-1
- Power supply230 V 50 Hz
- Regulations it complies withISO 11614, EMC Standard UNE 82503, NFR 10025-2016
- Measurement of the opacity at % and the absorption coefficient "k", calculated according to Beer-Lambert's Law
-
Dimensions
500 x 250 x 450 mm.
-
Measurable Gases
HC, CO, CO2
- Environmental working conditions: Humidity30-90%
- Environmental working conditions: Pollution<2%
- Storage temperature-32 to 55ºC
- OpticsGreen light source between 480 and 680 mm, max. 565 mm
- DetectorSilicon photodiode
- Response timeFrom 10 to 90%, <0,2 s
- Acoustic noise53 dB
- Warm-up period3-6 min, depending on outside temperature
- Standard test probe745 mm / 10 mm
- Opacity (range, resolution)N: 0-100% / 0,10% K: 0,00-9,99 m-1 / 0,01 m-1
- Power supply230 V 50 Hz
- Regulations it complies withISO 11614, EMC Standard UNE 82503, NFR 10025-2016
- Measurement of the opacity at % and the absorption coefficient "k", calculated according to Beer-Lambert's Law
-
Dimensions
500 x 250 x 450 mm.
