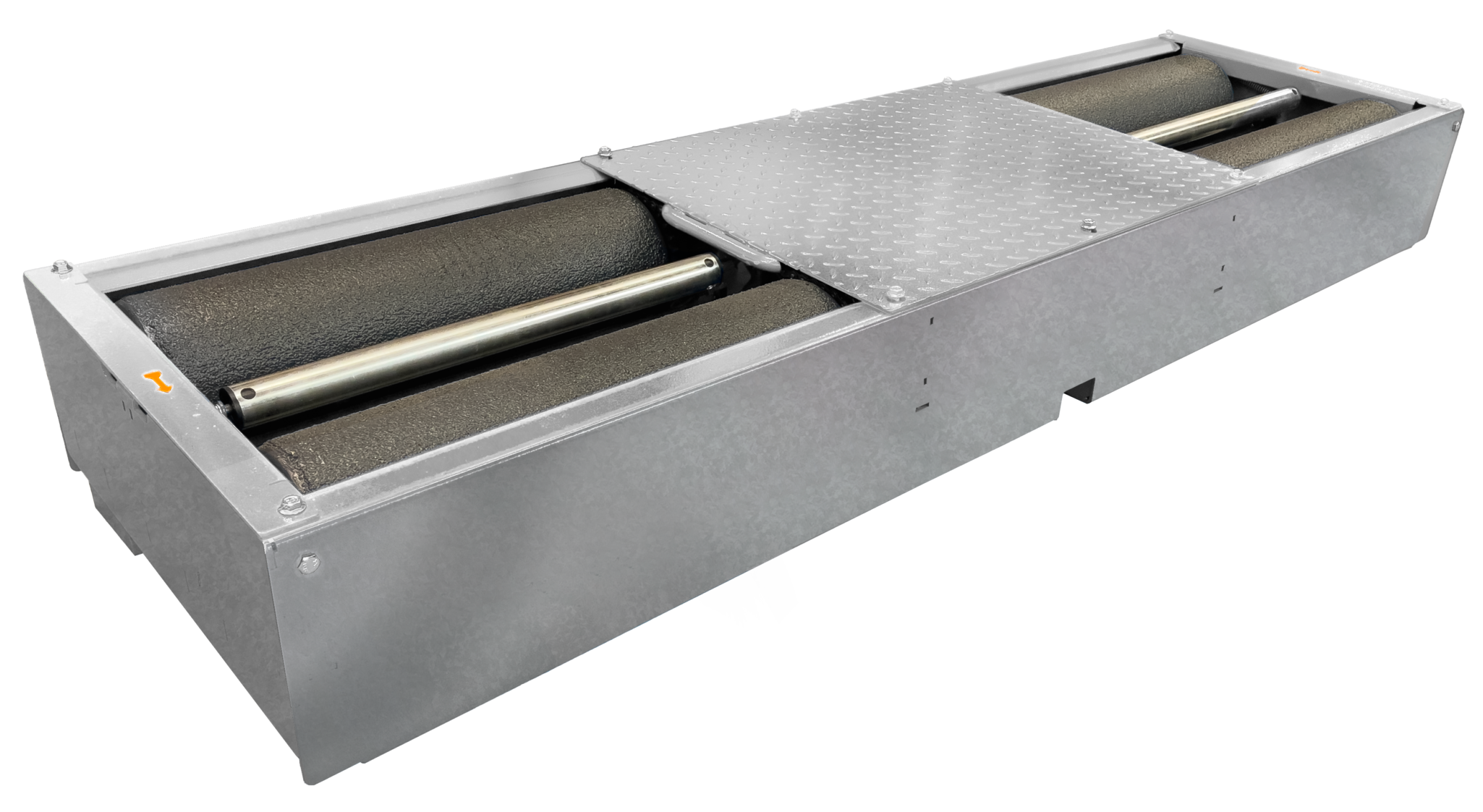

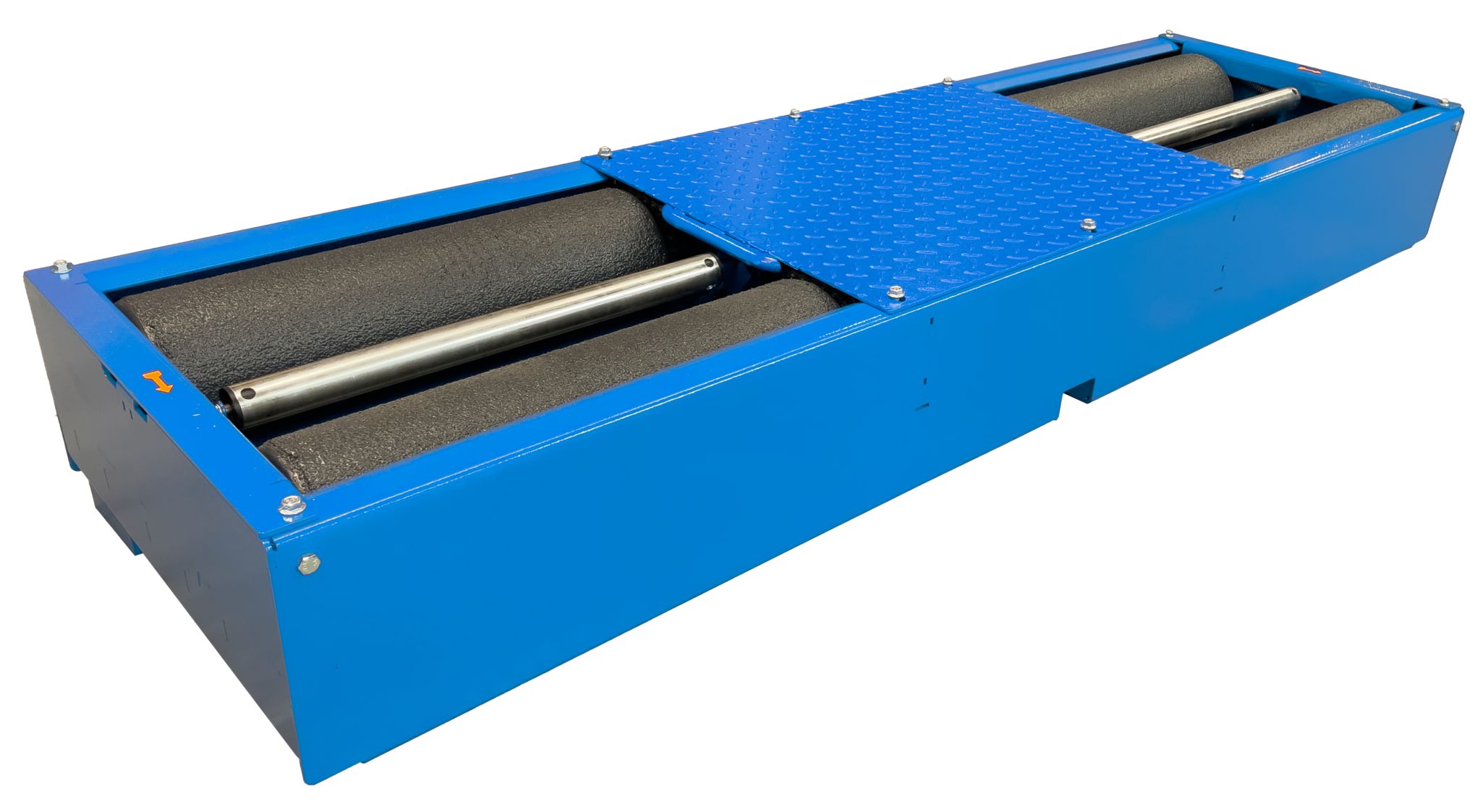

Light Vehicle Brake Tester FRL

The light vehicle brake tester FRL is designed for light vehicles up to 3,500 kg MMA.and withstand axle loads of up to 4 T per axle at passage. Its function is to perform a complete verification of the operation of the braking system.

The frame is equipped with independent motors to drive the rollers. It also incorporates safety systems that detect the presence of the vehicle throughout the test and the loss of adherence of the wheels at the time of measurement. The indication is independent for each wheel.

The most significant information obtained is:

Brake force measurement for manual and pedal brakes
Rolling resistance
Measurement of ovality and weight (optional)
Pedal effort (hand clamp and pedometer) *optional
Braking performance

Standard equipment

Brake tester
Control console
Self-locking rollers for easy exit
Electronic control and SMRW Software

Technical data

Maximum axle load per axle at passage4 T
Engine power
2 x 4.8kW
Test speed
5.4km/h
Maximum track width2.210 mm
Minimum track width870 mm
Voltage400 V 50 Hz
Fuse protection3 x 25 A
Thermal protector2 x 9-12.5 A
Roller diameter (welding, fibre)208 mm
Length of rollers685 mm
Useful length of the rollers665 mm
Distance between centres400 mm
Adhesion coefficient0,9 dry - 0,7 wet
Measurement scale0 - 6 kN
Measuring step0'01 kN
Measurement error indication1%

Software

Ryme Worldwide has SMRW (Software Maquinaria Ryme Worldwide) for its equipment, which is responsible for collecting information from our equipment and peripherals, analysing it and displaying it on the information output device. All of this is accompanied by the necessary electronics to optimise performance to the maximum.

Work in your inspection centre or workshop in the fastest and most efficient way with the operation of our Ryme Worldwide Machinery Software.

A unique way of working designed to make the inspector's job easier.

No redundancies, what you need, when you need it, how you need it. Read more
